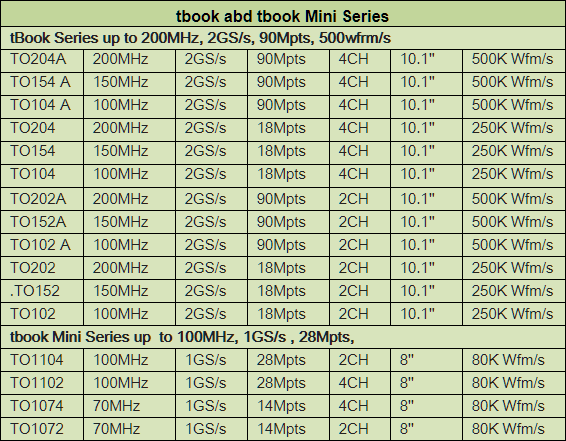

tBook mini & tBook series
- Bandwidth up to 200MHz
- Sample Rate Analog channel up to 2GSa/s.
- Upto 500,000 waveforms/sec capture rate.
- Standard Memory depth: Analog channel up to 90Mpts.
- 2 or 4 Analog Channels
- Lower noise floor, the Min. vertical sensitivity is up to 500uV/div
- A variety of Trigger functions
- Gradient waveform display with 256 intensity level.
- 10.1 and 8 Inch multi touch capacitive touch screen Display.
- Upto 5 Hours battery Back up
- 8GB in-Built storage.
- Complete Connectivity: USB 2, Micro USB 2, Wifi ,LAN, HDMI
